Machine Specifications:
Grader

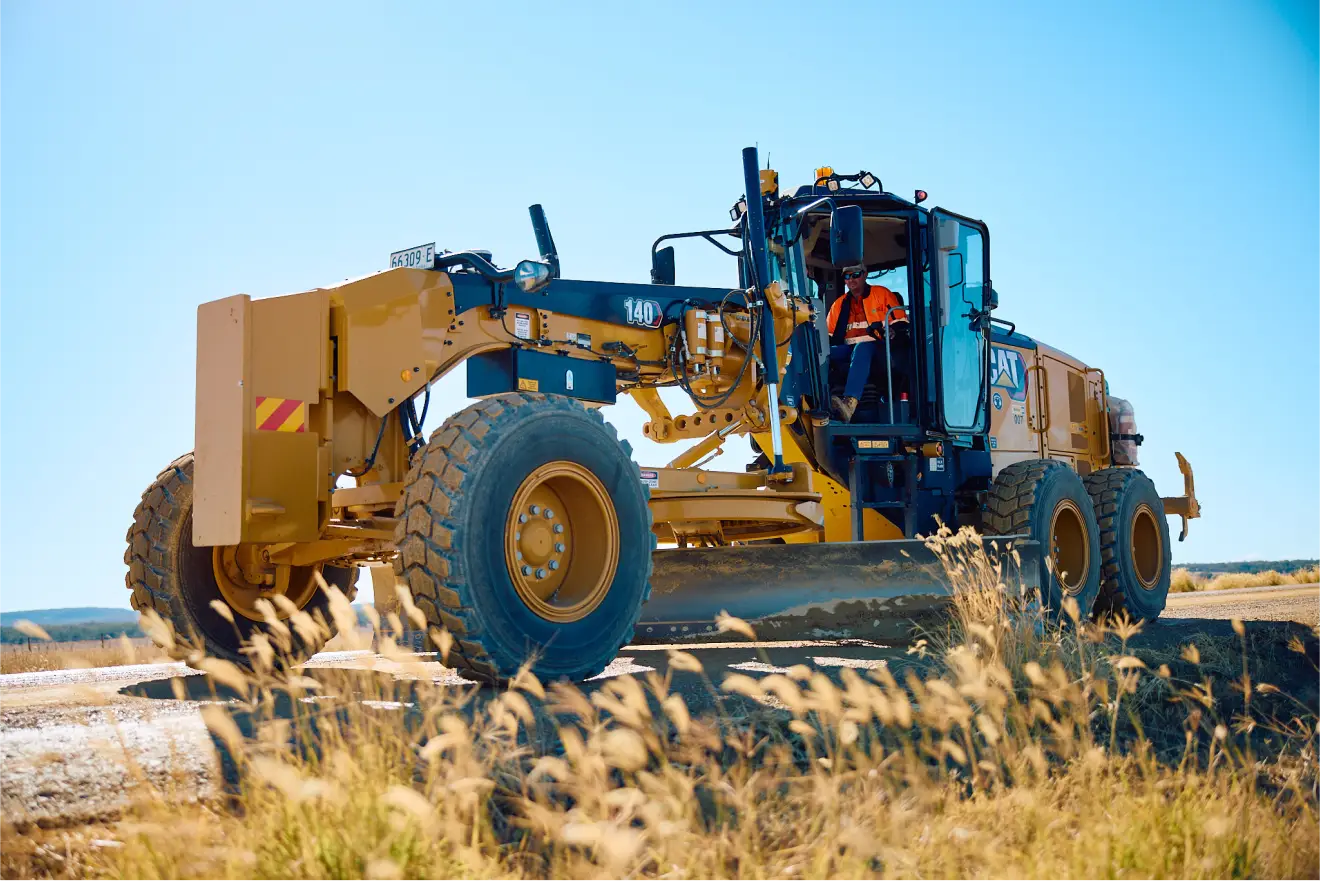

140 Motor Grader

MACHINE DIMENSIONS [ mm ] [ in ]
Height – Top of Cab 3308 130
Height – Front Axle Center 596 23.5
Length – Between Tandem Axles 1523 60
Length – Front Axle to Moldboard 2552 100
Length – Front Axle to Mid Tandem 6123 241
Length – Front Tire to Rear of Machine 8912 351
Length – Counterweight to Ripper 10136 399
Ground Clearance at Rear Axle 339 13.3
Height to Top of Cylinders 3040 120
Height to Exhaust Stack 3256 128
Width – Tire Centerlines 2140 84.3
Width – Outside Rear Tires 2511 98.9
Width – Outside Front Tires 2511 98.9
