Machine Specifications:
Bomag Series 5

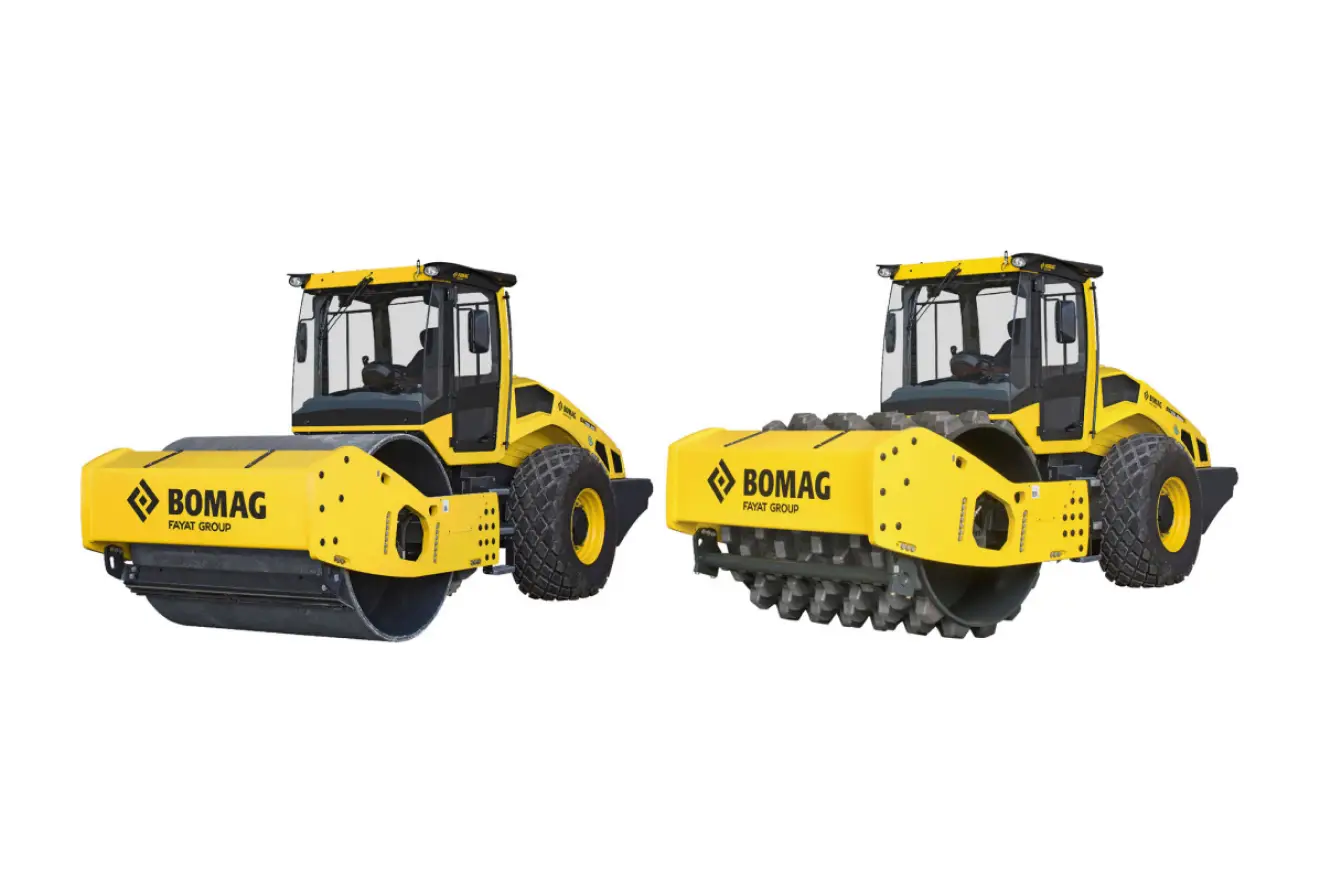

Bomag Datasheet BW211D-5 & PD-5

MACHINE DIMENSIONS BW 211 D-5 BW 211 PD-5
Total length (L) [ mm ] 5870 2975
Width (B) [ mm ] 2270 2270
Total height (H) [ mm ] 2990 2990
Drum width (X) [ mm ] 2130 2130
Height loading, min. (Hl) [ mm ] 2260 2260

Bomag Datasheet BW213D-5

MACHINE DIMENSIONS BW 213 D-5 BW 213 DH-5 BW 213 PDH-5
Total length (L) [ mm ] 5875 5875 5875
Width (B) [ mm ] 2270 2270 2270
Total height (H) [ mm ] 2990 2990 2990
Drum width (X) [ mm ] 2130 2130 2130
Height loading, min. (Hl) [ mm ] 2250 2250 2150

Bomag Datasheet BW216PD-5

MACHINE DIMENSIONS BW 219 D-5 BW 219 PD-5
Total length (L) [ mm ] 6500 6500
Width (B) [ mm ] 2300 2300
Total height (H) [ mm ] 2295 2295
Drum width (X) [ mm ] 2130 2130
Height loading, min. (Hl) [ mm ] 3034 3034

Bomag Datasheet BW219D-5 & PD-5

MACHINE DIMENSIONS BW 216 D-5 BW 216 PD-5
Total length (L) [ mm ] 6220 6220
Width (B) [ mm ] 2300 2300
Total height (H) [ mm ] 2250 2250
Drum width (X) [ mm ] 2130 2130
Height loading, min. (Hl) [ mm ] 2990 2990
